HUAWEI WATCH 5

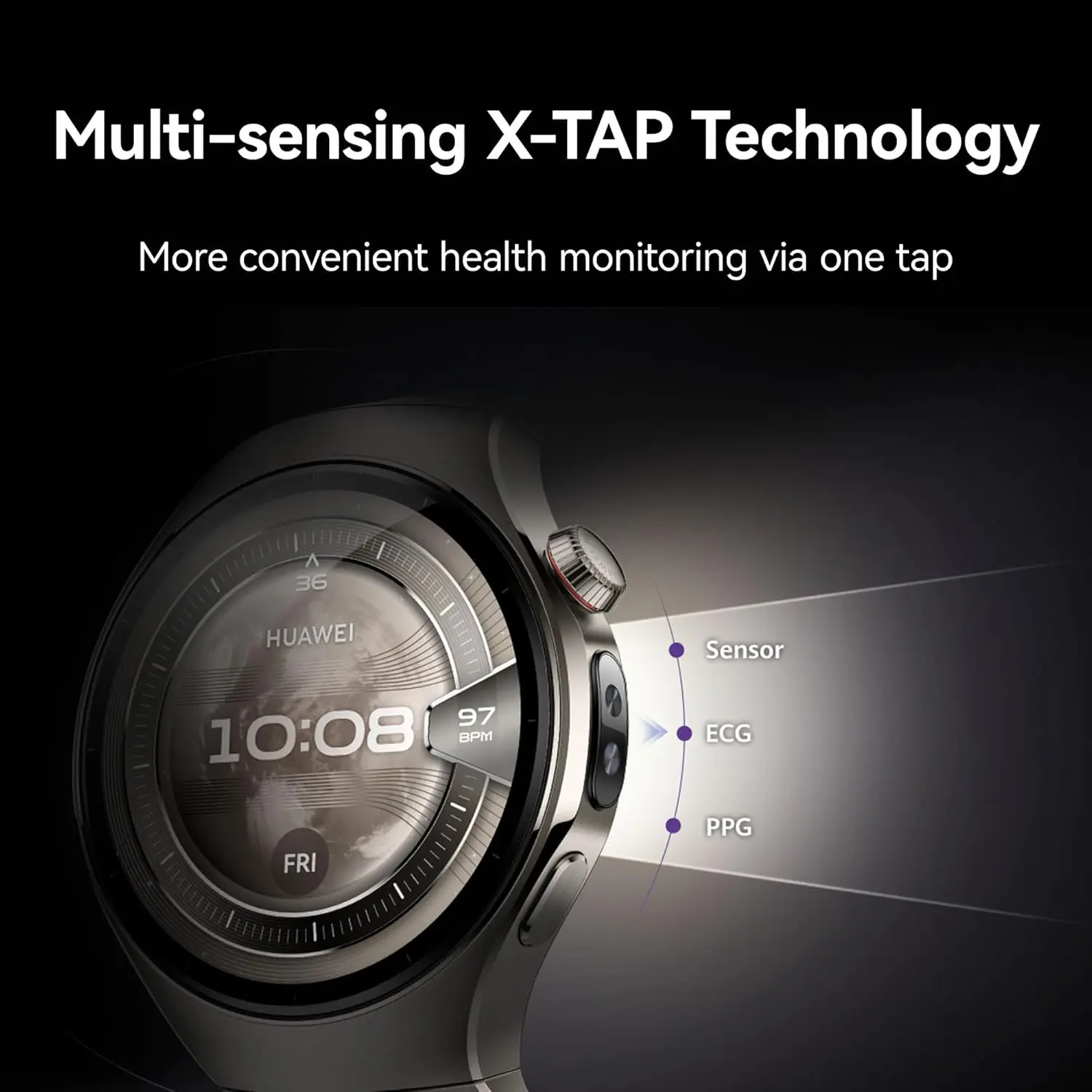

Multi-sensing X-TAP Technology
Fingertip Blood Oxygen
eSIM Cellular Calling
Unlock a new era of style and substance with HUAWEI WATCH 5, designed for tomorrow but fit for today. It packs Kármán line-inspired curves and futuristic tech into an iconic streamlined form that's as comfortable as it is revolutionary.

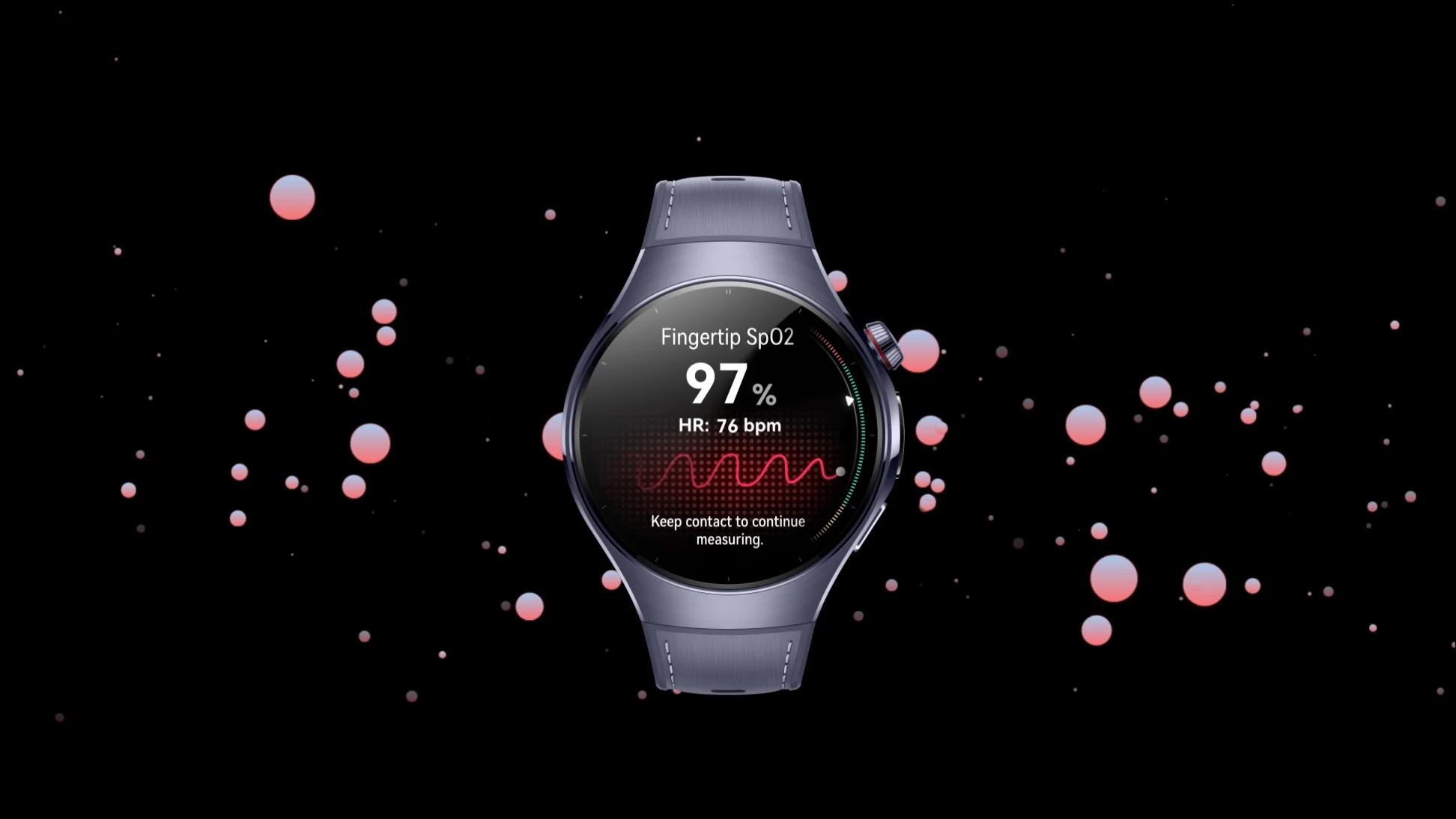

Real-Time Fingertip Blood Oxygen1
First-ever smartwatch supporting real-time, continuous fingertip SpO2 measurement. Just tap the HUAWEI X-TAP sensor to get an accurate blood oxygen reading in 10 seconds. It is powered by a robust signal that taps into the rich vascular networks at your fingertips.

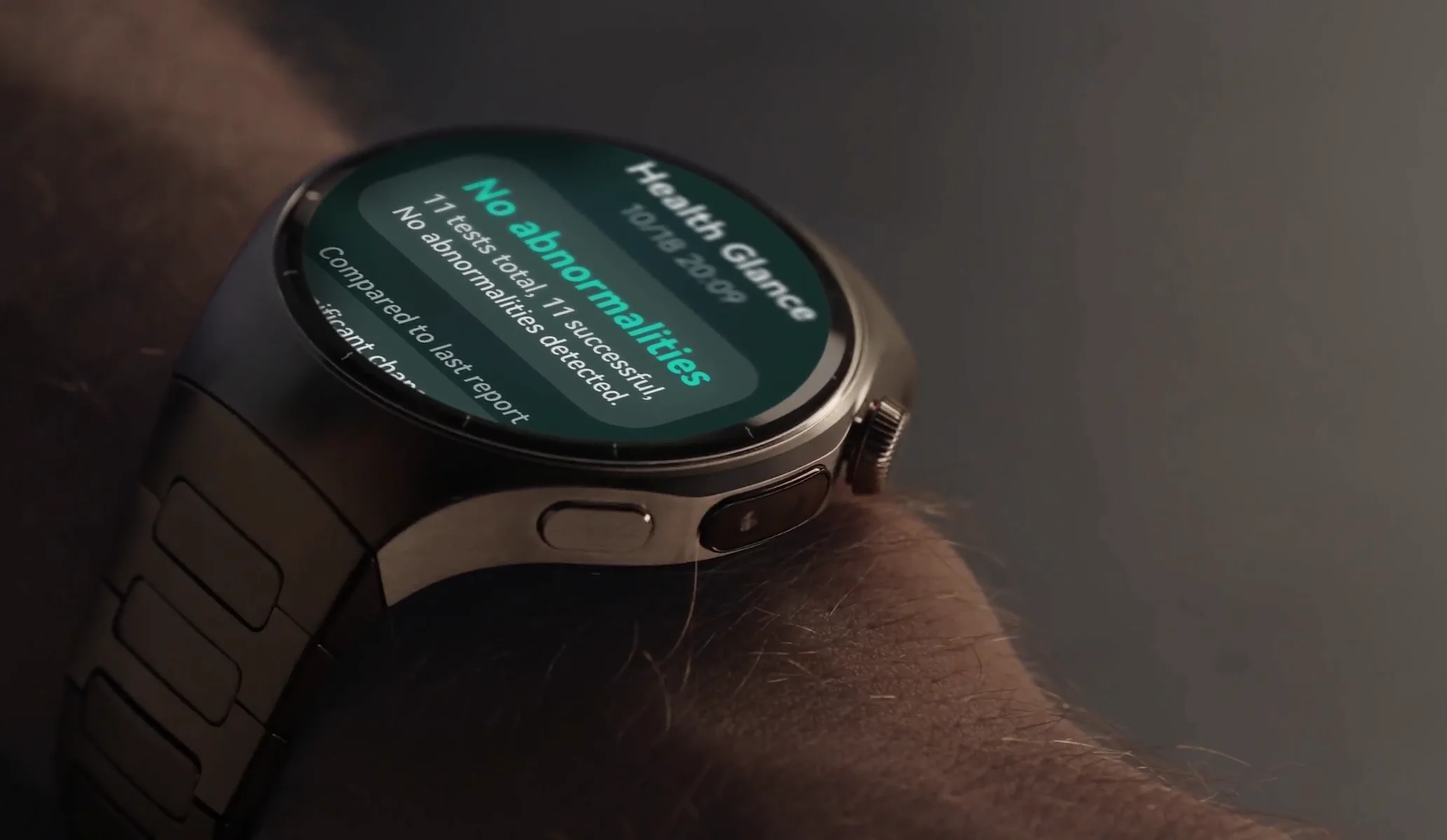

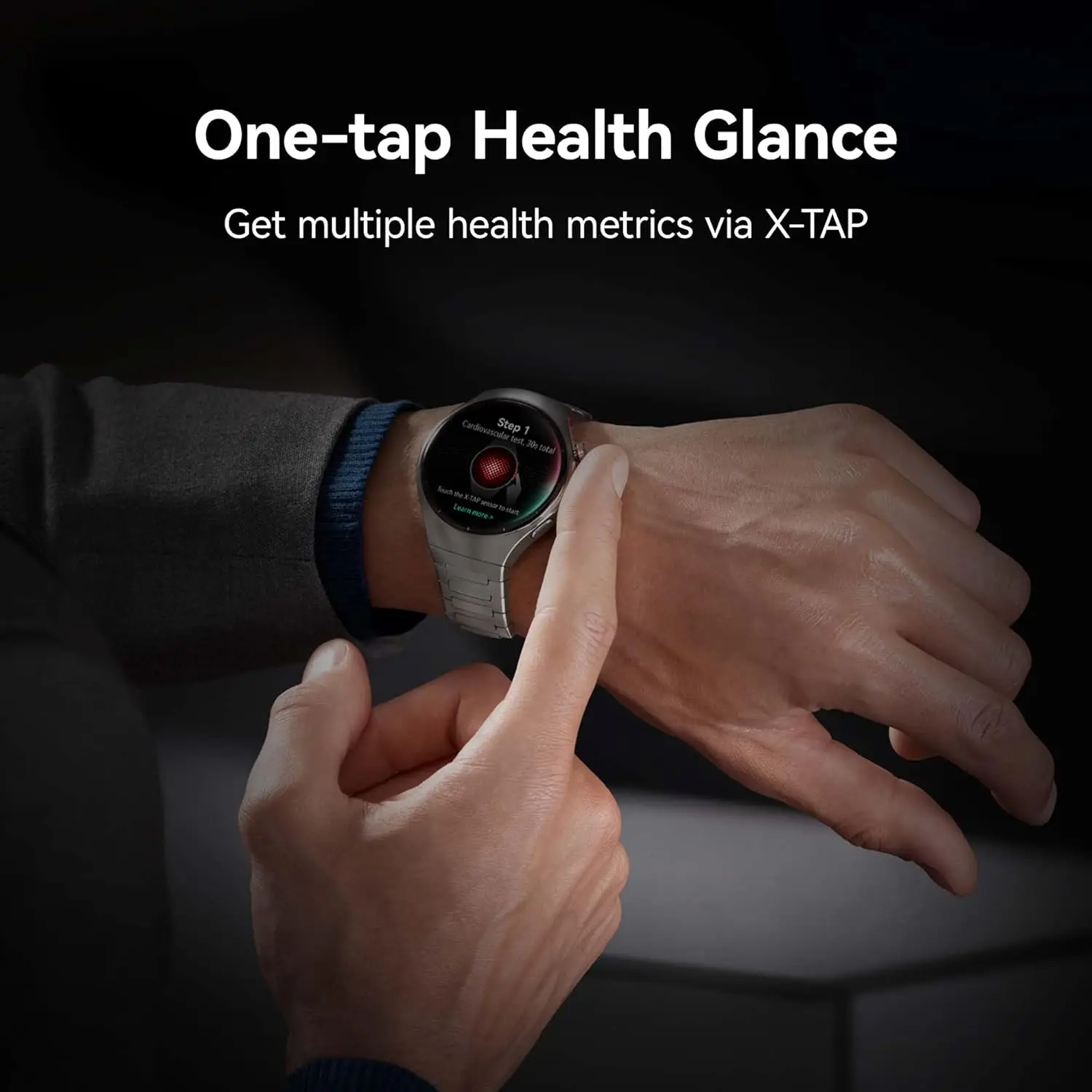

Health Glance
Press and hold the HUAWEI X-TAP sensor for 3 seconds to start a Health Glance check, and get your comprehensive report within a minute, complete with 11 key indicators and personalized analysis.
Quick Health Checks
Feeling under the weather,Simply press and hold the Huawei X-TAP sensor for 3 seconds

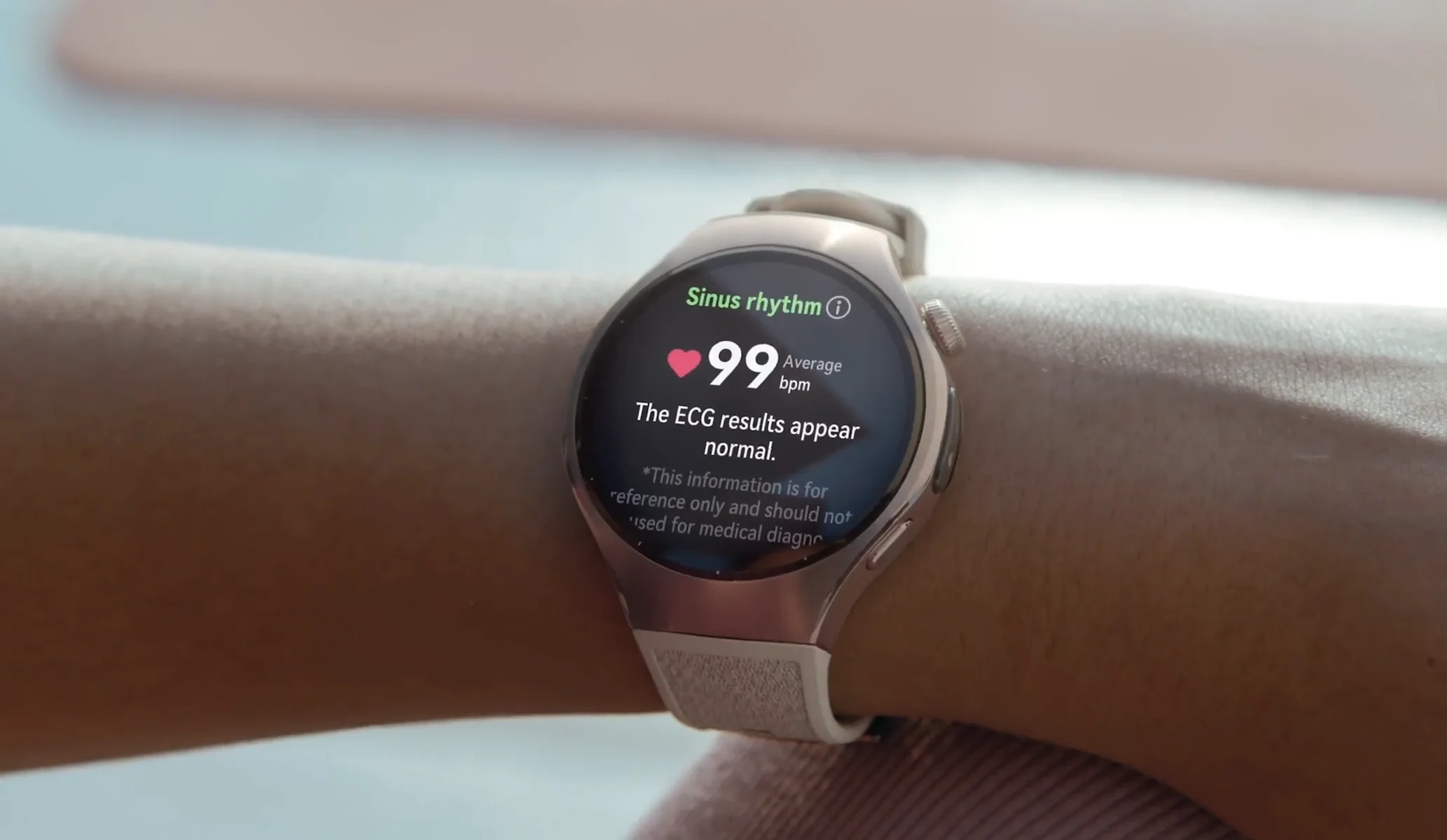

Care for Heart Health
Work out your way,and tap the HUAWEI X-TAP sensor and get seamless ECG reading,Moreover,unlock NEX-LEVEL nsights,such as the newly introduced heart rae variabilit metric
One More Gesture, Endless Choices
Take charge touch-free with intuitive Smart Gestures powered by a high-performance NPU - first for HUAWEI wearables.
Tap conrol,Slide control
Tap your thumb and index fingertips together twice to confirm an option.
Slide your thumb twice along your index finger to switch options.
Manage Calls, silence Alarms, control your Music, and Remote Shutter.

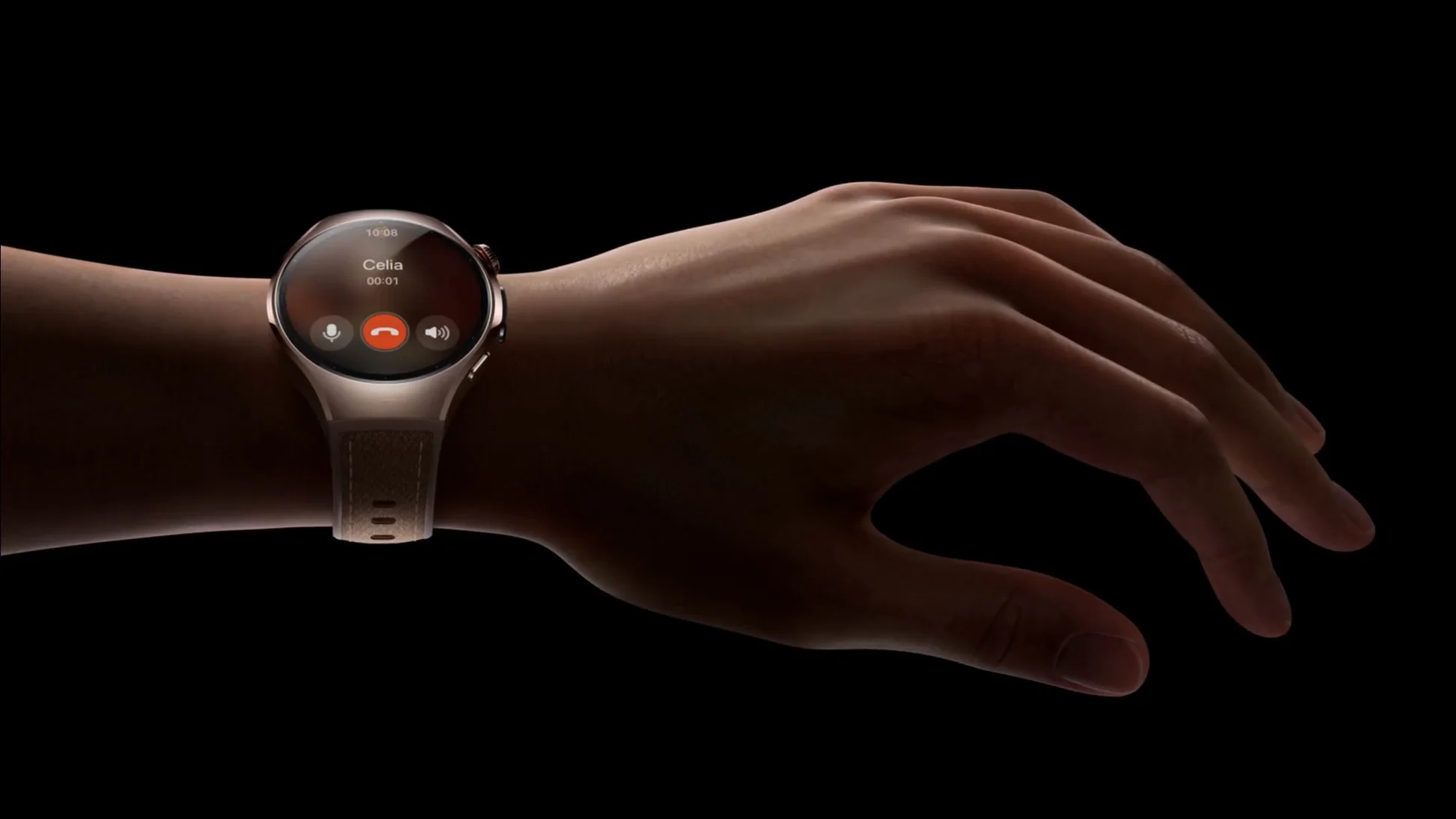

Connect Without Compromise
Make calls without your phone, thanks to robust eSIM services. Stay connected throughout the day with powerful Wi-Fi 6, which offers up to double the internet access speeds
Two Battery Modes, Just a Tap Away

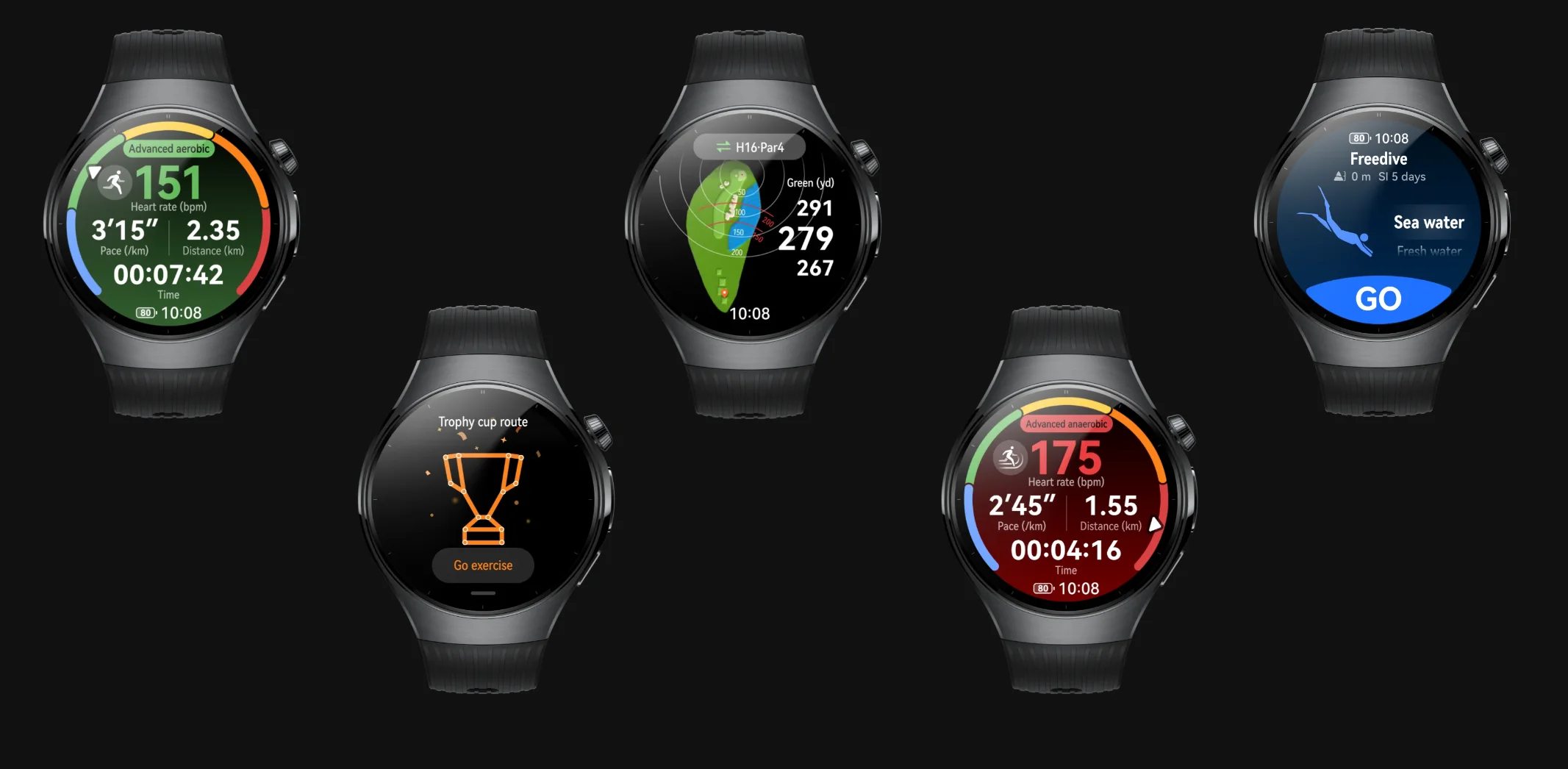

Embrace your athletic potential with 100+ workout modes to choose from, including 14 pro-level sports like golf and freediving, and track every move in real time with unparalleled accuracy, thanks to the 35% more accurate positioning powered by the new HUAWEI Sunflower Positioning System.
Two Battery Modes, Just a Tap Away
Go with Standard mode for access to all your favourite features, or squeeze more out of your watch with Battery saver mode21. You can effortlessly switch between these two modes in just seconds, adapting to your daily needs on a whim and powering through your days with ease.

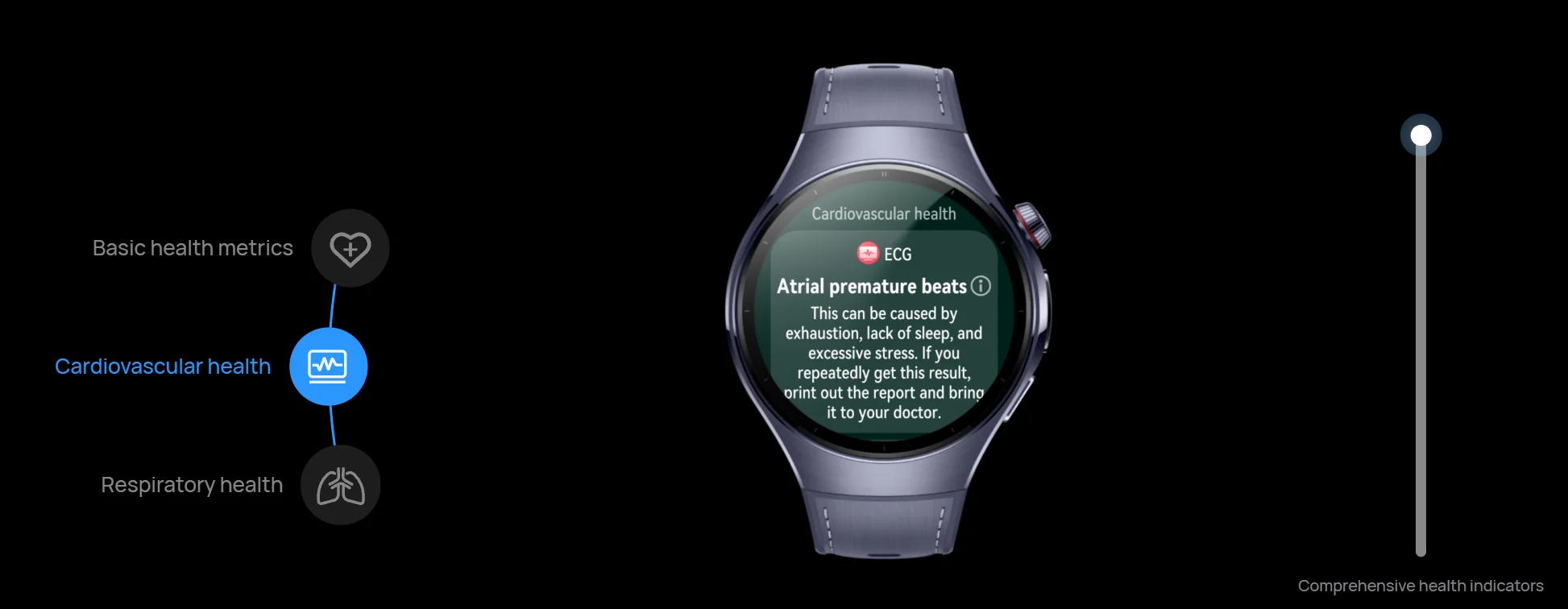

About ECG
An electrocardiogram (ECG) is a graphical recording of the heart's electrical activity. The app uses ECG data to determine whether cardiac rhythm is normal, and outputs results, including sinus rhythm, atrial fibrillation (A-fib), atrial premature beat, and ventricular premature beat, to help you proactively address potential heart health risks.
HUAWEI Health +
Experience the ultimate in digital wellness with HUAWEI Health+, and access a range of premium services from smart weight management coaching, to personalised diet planning and exclusive fitness classes.

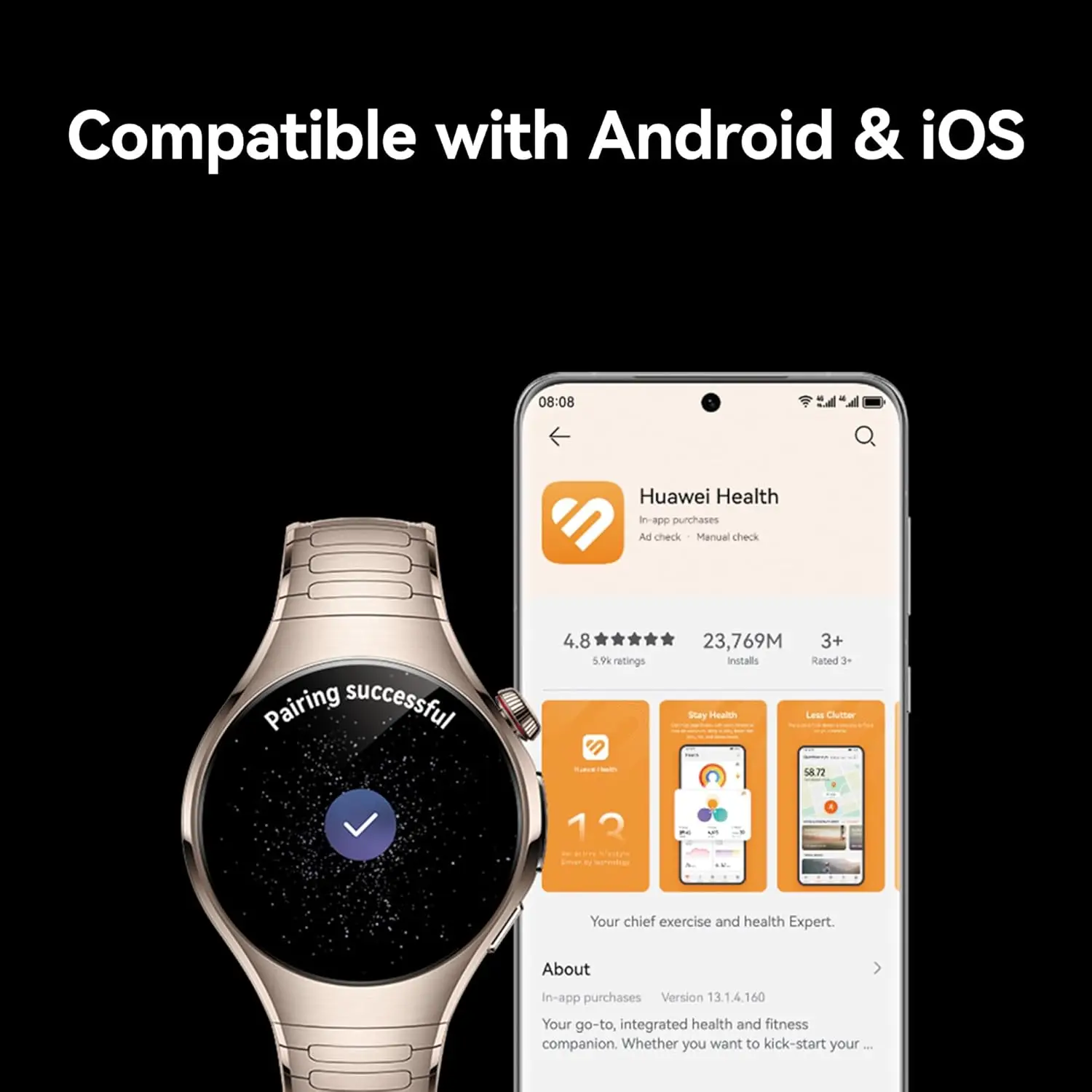

Broadly Compatible
HUAWEI WATCH 5 is compatible with both iOS and Android, so that you can stay connected, track your fitness goals, and get real-time notifications—all on your own terms
SPECIFICATIONS
Dimensions

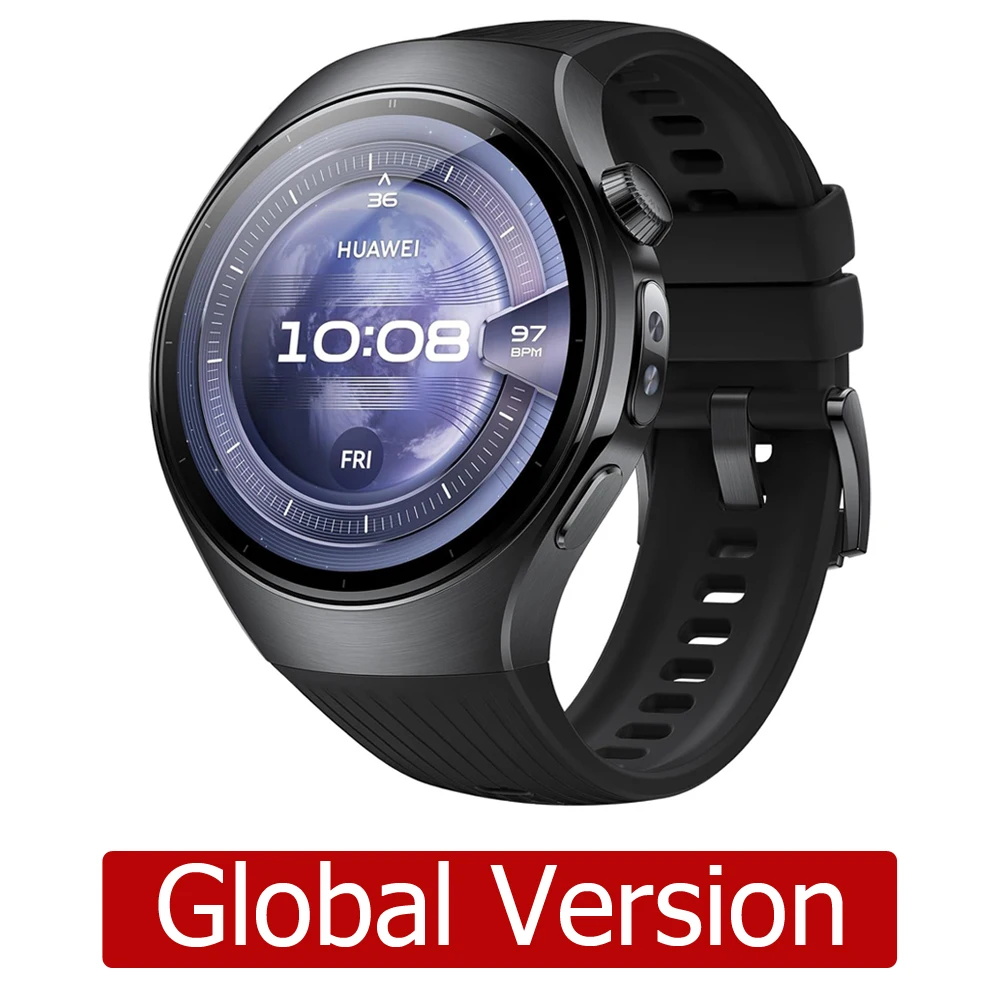

HUAWEI WATCH 5 46 mm
46 mm × 46.7 mm × 11.3 mm
HUAWEI WATCH 5 42 mm
42 mm × 42.5 mm × 10.5 mm
*Product size, product weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.
Wrist Size
HUAWEI WATCH 5 46 mm
140-210 mm
HUAWEI WATCH 5 42 mm
120-190 mm (Beige: 120~180 mm)
Watch Strap
HUAWEI WATCH 5 46 mm

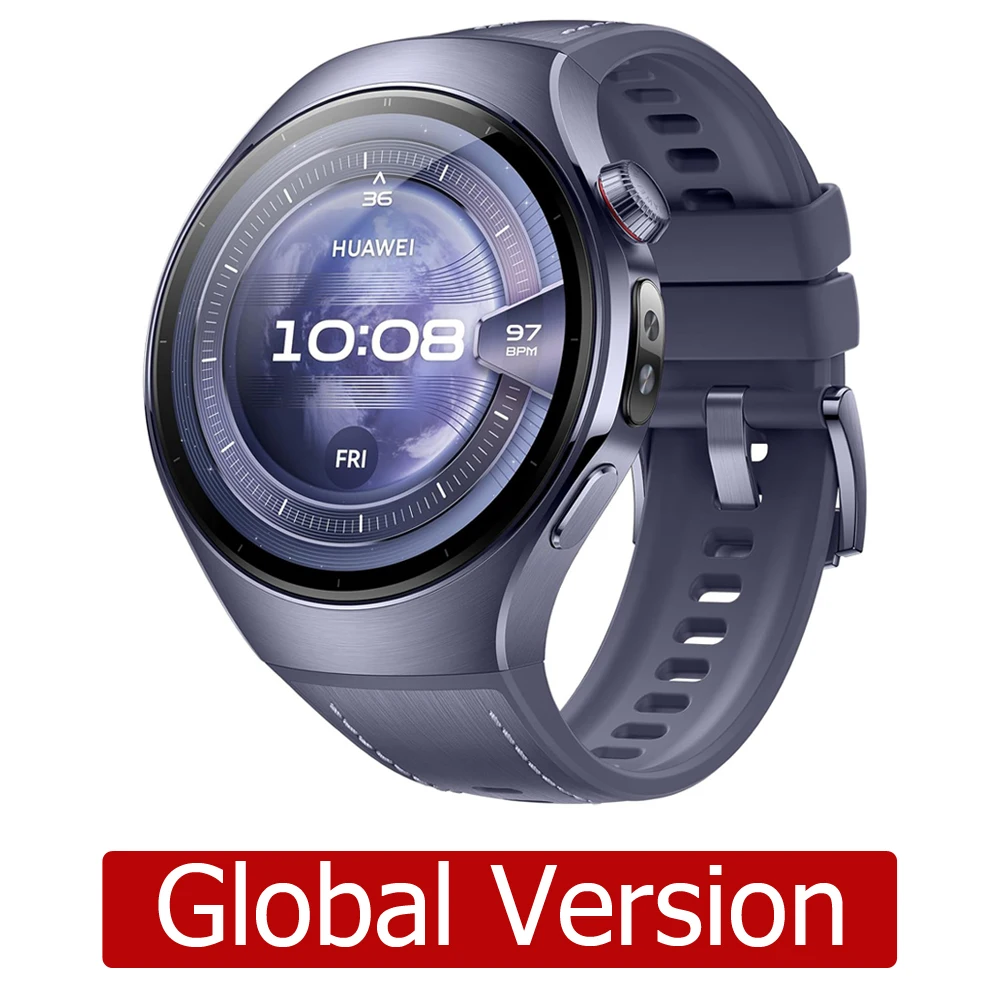

Purple composite strap

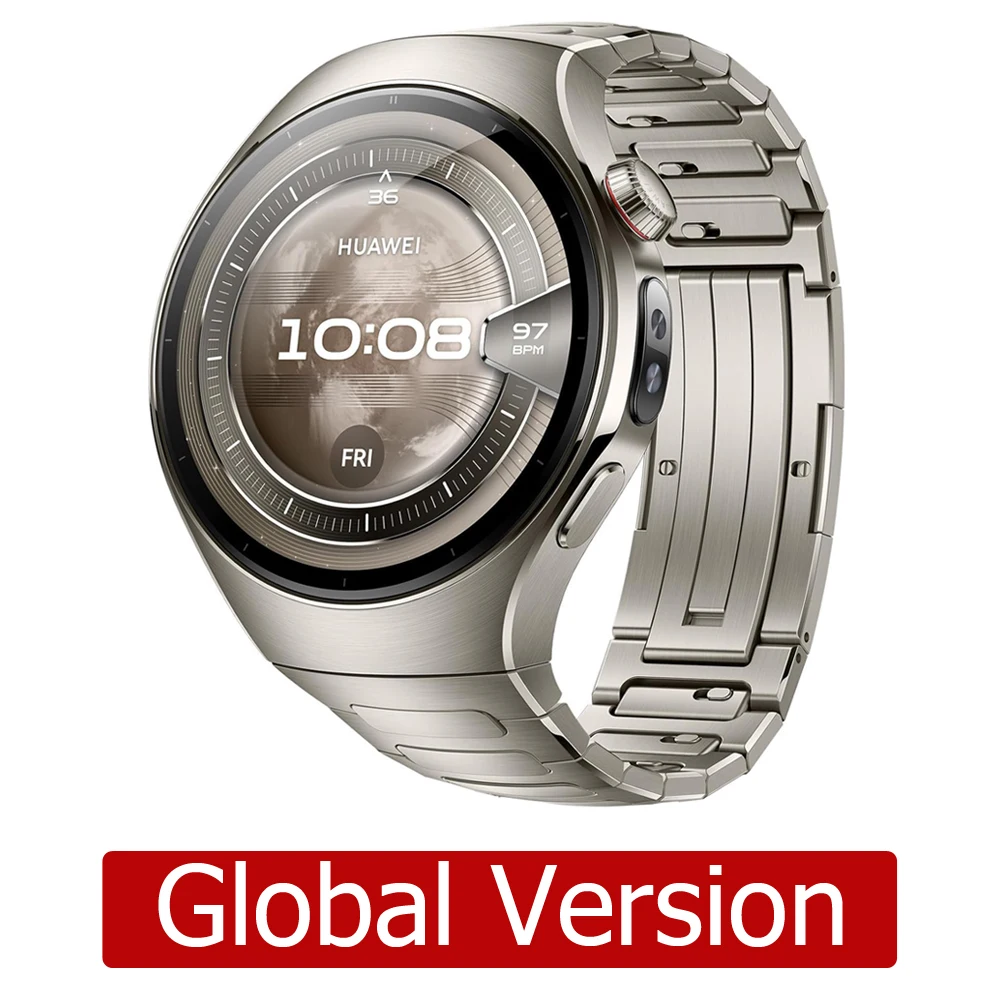

Silver titanium strap
Black fluoroelastomer strap
HUAWEI WATCH 5 42 mm

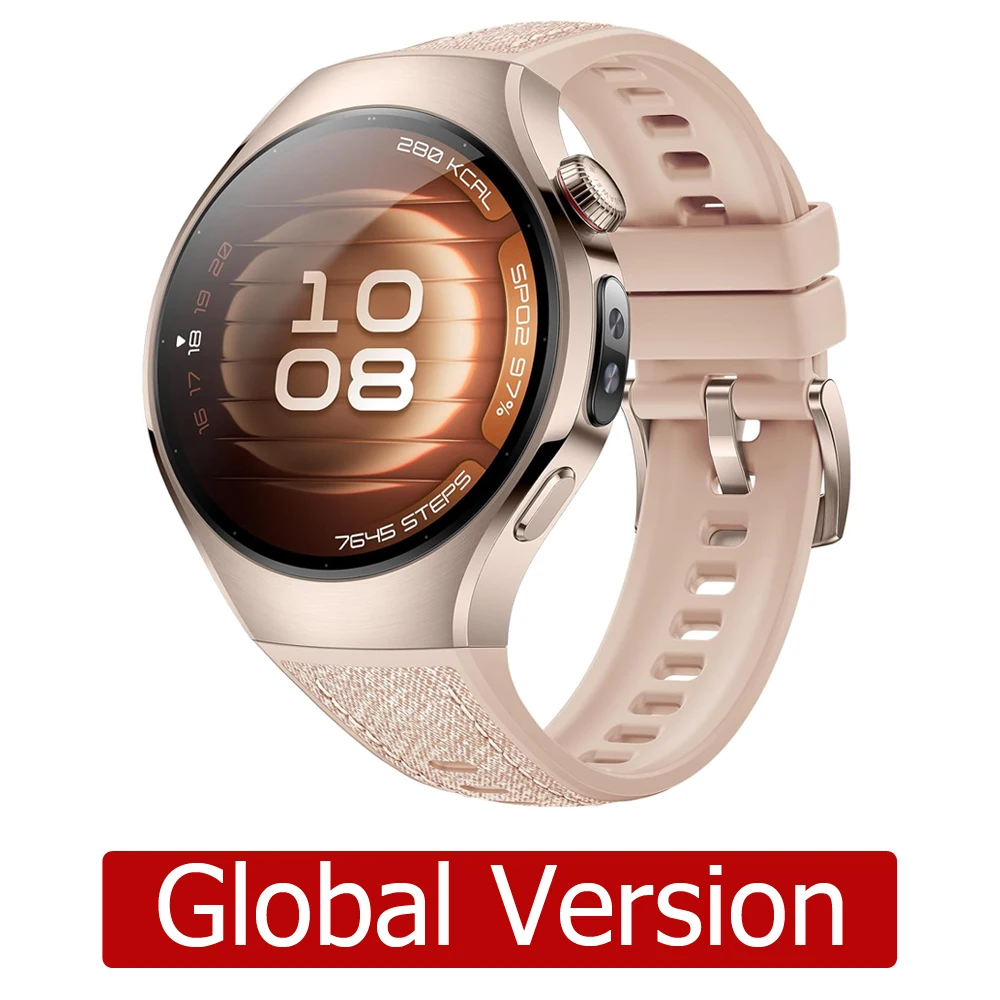

Beige composite strap

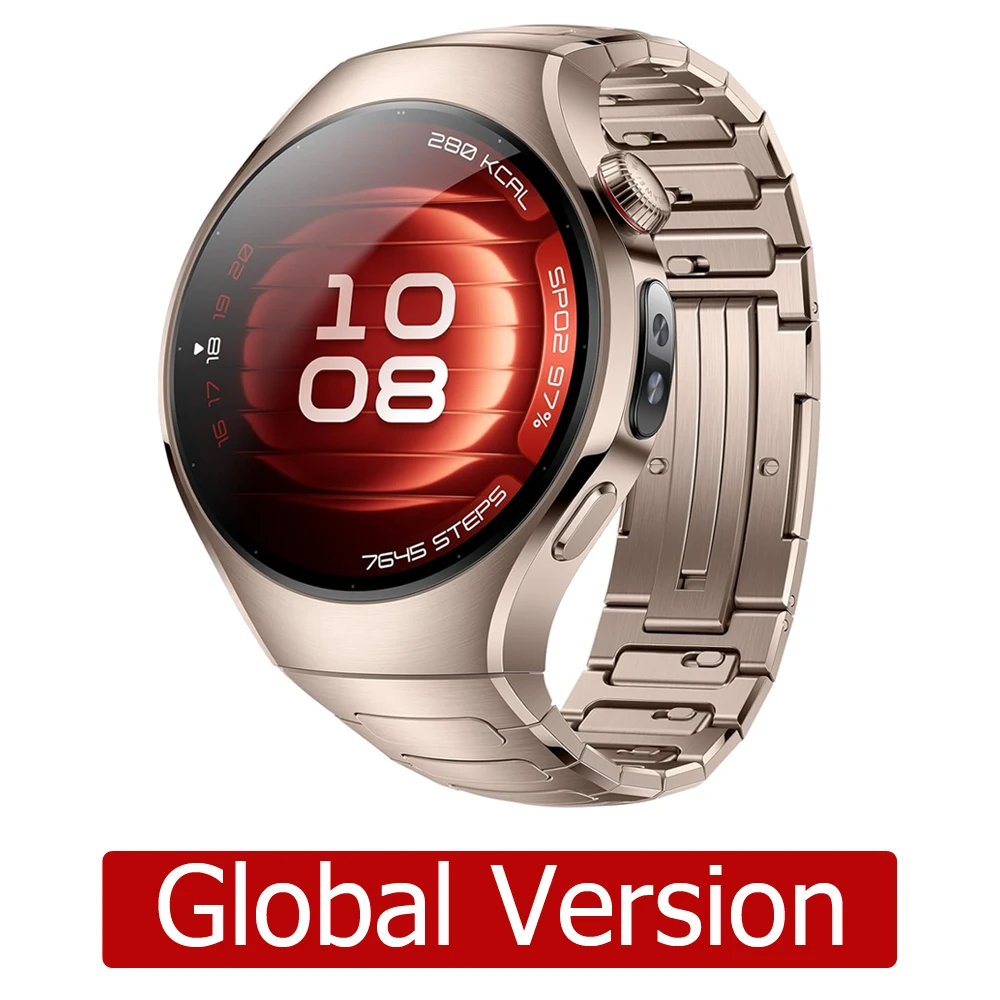

Sand gold titanium strap

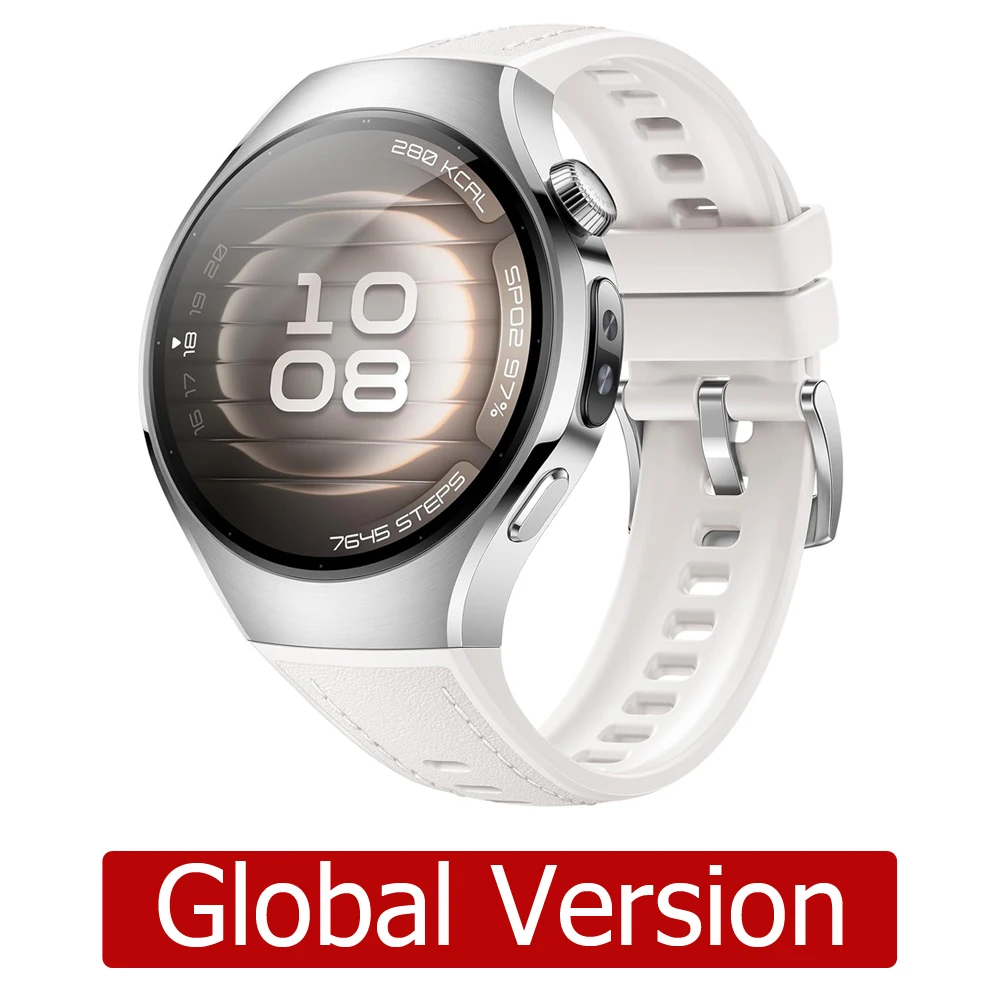

White composite strap
Weight
HUAWEI WATCH 5 46 mm
Purple, Silver, Brown
Approx. 58 g (excluding the strap)
Blue, Black
Approx. 63 g (excluding the strap)
HUAWEI WATCH 5 42 mm
Beige, Sand gold
Approx. 51 g (excluding the strap)
White, Green, Black
Approx. 48 g (excluding the strap)
*Product size, product weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.
Display
HUAWEI WATCH 5 46 mm
Size
1.5 inches LTPO 2.0 AMOLED color screen
Resolution
466 × 466 pixels, PPI 310
Brightness
3000-nit peak brightness
HUAWEI WATCH 5 42 mm
Size
1.38 inches LTPO 2.0 AMOLED color screen
Resolution
466 × 466 pixels, PPI 338
Brightness
3000-nit peak brightness

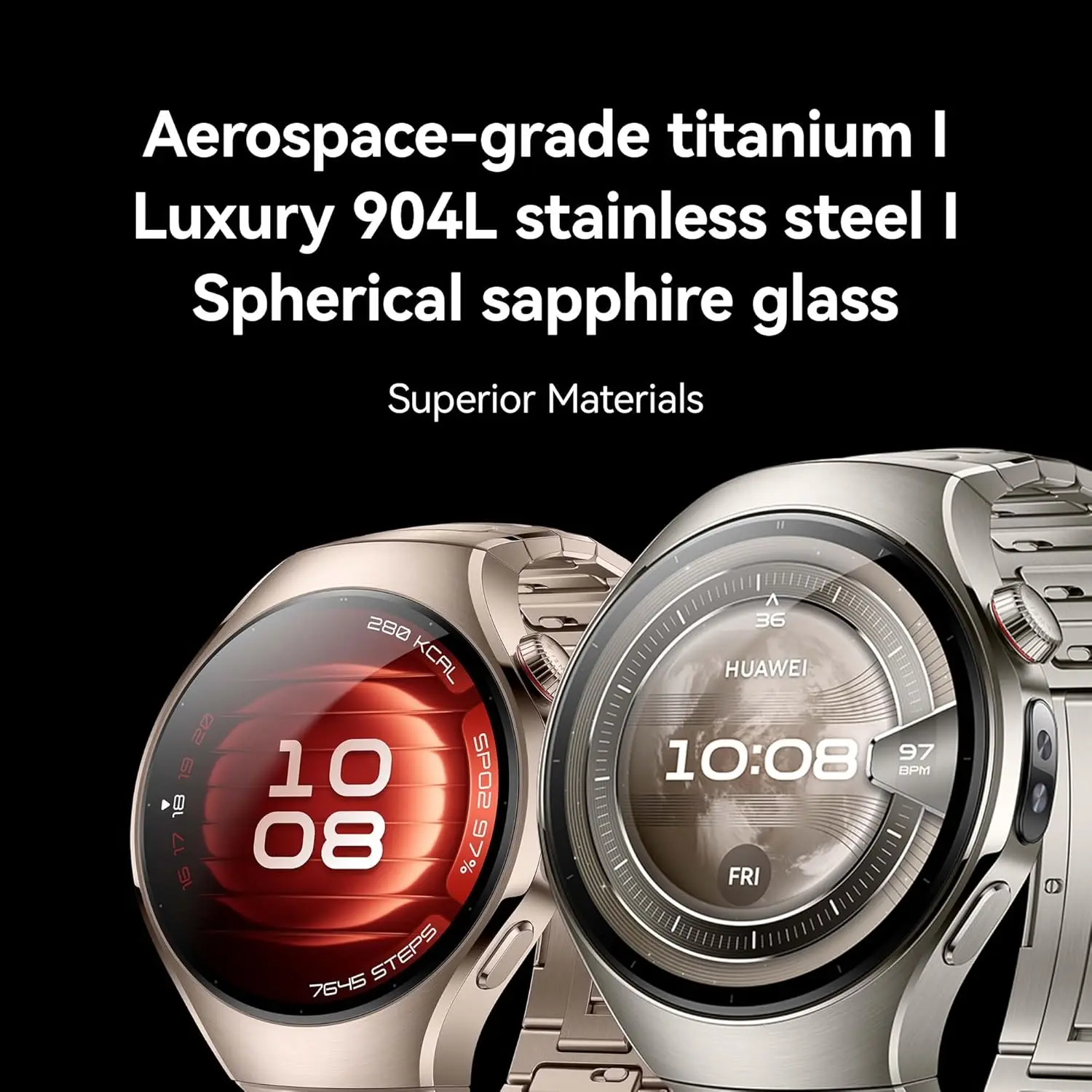

Watch Case
HUAWEI WATCH 5 46 mm
Material
Purple, Silver, Brown
Front case: Aerospace-grade titanium
Rear case: Ceramics
Blue, Black
Front case: 316L stainless steel
Rear case: High-performance fiber-reinforced composites
HUAWEI WATCH 5 42 mm
Material
Beige, Sand gold
Front case: 904L stainless steel
Rear case: Ceramics
White, Green, Black
Front case: 316L stainless steel
Rear case: High-performance fiber-reinforced composites
Sensors
Acceleration sensor
Gyroscope sensor
Compass sensor
Optical heart rate sensor 6.0
Barometer sensor
Ambient light sensor
Body temperature sensor
ECG sensor
Depth sensor
X-TAP sensor
Button
Up button (Rotating Crown) + Down button + HUAWEI X-TAP
Charging Port
Wireless charging
System Requirements
Android 9.0 or later
iOS 13.0 or later
Waterproof Level
5 ATM: This product complies with 5 ATM-rated water resistance under the ISO 22810:2010 standard, which indicates that the device can withstand up to 50 meters of static water pressure for 10 minutes, but does not mean that the product is water-resistant in water that is 50-meter deep.
IP69: This product complies with the IP69-rated water resistance under the GB/T 4208-2017 standard. The IPX9 test conditions are as follows: water temperature: 80 ± 5℃; water flow: 15 ± 1 L/min; water pressure: 10,000 ± 500 kPa; spray angle: 0°, 30°, 60°, and 90°, 30 seconds for each angle. This does not indicate protection during hot water showers. The product complies with the EN13319 standard for diving accessories, supports freedives at depths of up to 40 meters, and can be worn during shallow water activities such as swimming in a pool or at the beach. Remember to clean and dry the device promptly after wearing it in water activities, remove water stains from all surfaces and holes, and use the device's drainage feature to avoid undermining device performance.
The wearable device should not be worn in the following scenarios: (Damage to the device caused by immersion in liquid is not covered by the warranty if the device is worn in an inappropriate scenario.) 1. Hot showers, hot springs, saunas (steam rooms), and other activities in high-temperature and/or high-humidity environments. 2. Activities that could expose the device to shower gel, shampoo, soapy water, and any other laundry or cleaning products. If the device does come into contact with any such product, rinse and soak the device in fresh water for 30 minutes. 3. Scuba dives, technical dives, and diving activities at depths greater than 40 meters. 4. Composite vegan leather, composite woven, titanium, and ceramic straps are not designed for water activities (such as swimming) or to withstand sweat, and therefore it is recommended that other straps be used in such scenarios.
For more information about the water resistance of Huawei wearables, please visit: https://consumer.huawei.com/en/support/content/en-us15851428/. Water resistance is not permanent, and performance may deteriorate with daily wear and tear. It is recommended that you regularly take your device to an authorised Huawei service center for inspection and maintenance. For details about stores and models, please visit: https://consumer.huawei.com/en/support/content/en-us15925309/.
Connectivity
NFC
Bluetooth
BT 5.2, BR + BLE
GNSS
L1: GPS + GLONASS + GALILEO + BeiDou + QZSS
L5: GPS + GALILEO + BeiDou + QZSS
WLAN
Wi-Fi 6: 2.4 GHz + 5 GHz
IEEE 802.11a/b/g/n/ac/ax 1 × 1
Speaker
Supported
Microphone
Supported
Environment
Operating temperature
0°C to 35°C
Storage temperature
–20°C to +55°C
Charging
Charger Voltage and Current Requirements
5V-10V DC/2A MAX

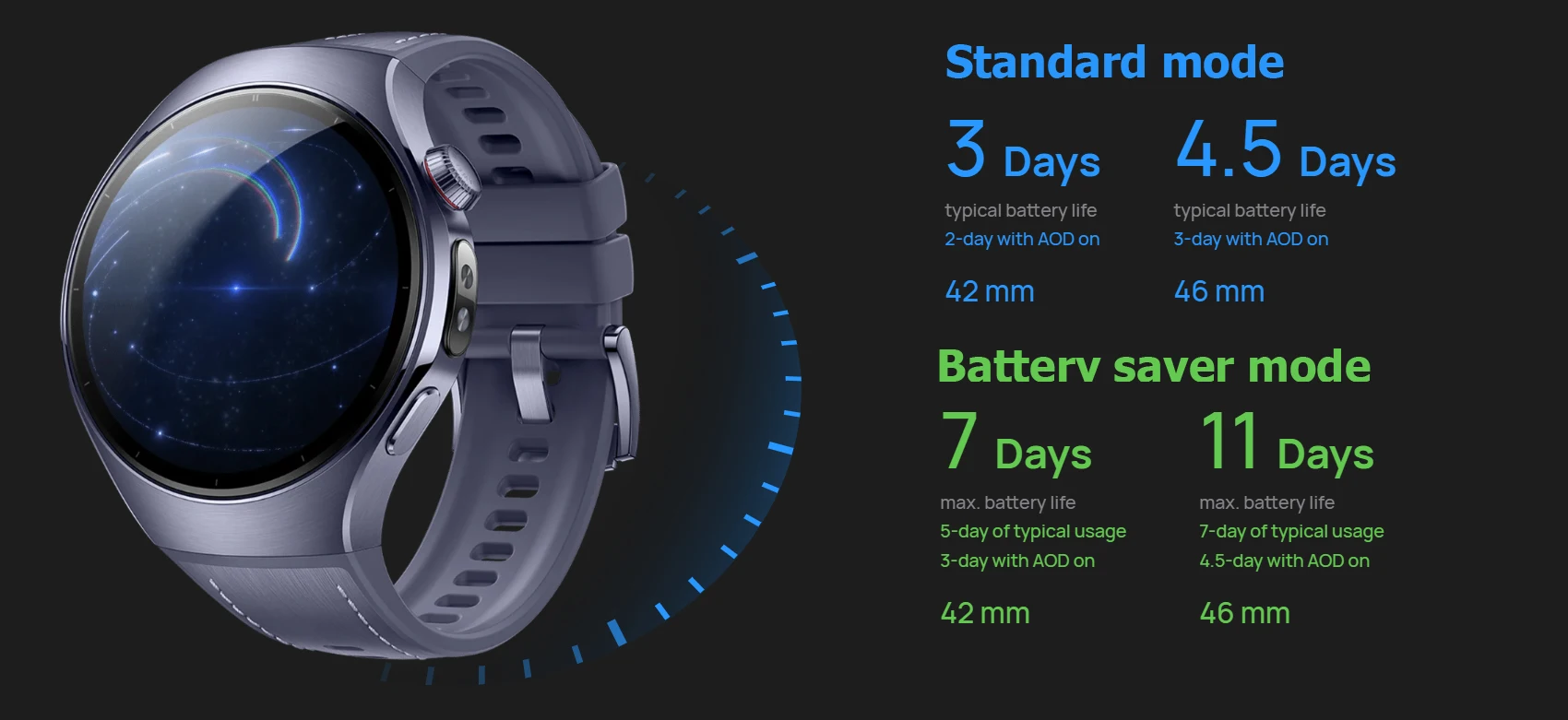

Battery Life
HUAWEI WATCH 5 46 mm
Standard mode:
4.5 days for typical usage; 3 days with AOD on
Battery saver mode:
11 days max. battery life; 7 days for typical usage; 4.5 days with AOD on
*HUAWEI WATCH 5 46 mm (under Standard mode): When paired with an iPhone, the battery can last for up to 3 days given typical usage or up to 2 days with AOD enabled.
HUAWEI WATCH 5 42 mm
Standard mode:
3 days for typical usage; 2 days with AOD on
Battery saver mode:
7 days max. battery life; 5 days for typical usage; 3 days with AOD on
*HUAWEI WATCH 5 42 mm (under Standard mode): When paired with an iPhone, the battery can last for up to 2 days given typical usage or up to 1.5 days with AOD enabled.
